Specifications

48A EVSE and 80A EVSE

  • 48A and 80A AC chargers
  • Utility grade metering
  • Wifi / 4G / Mesh networking
  • Dual SIM slots
  • Local Power Management
  • Customizable screen
  • OCPP + Fractal Configuration cloud
  • UL Listed, FCC certified

Streamline Distribution

  • Decoupled IT and electrical onboarding
  • Factory configured & cloud provisioning
  • Reduce/eliminate warehousing

Reduce Site Visits

  • Offline charger recovery
  • Dedicated mesh network
  • Data reporting & OCPP logging

Preserve Flexibility

  • Network agnostic
  • REST API for integrations
  • Cost competitive
Product Details

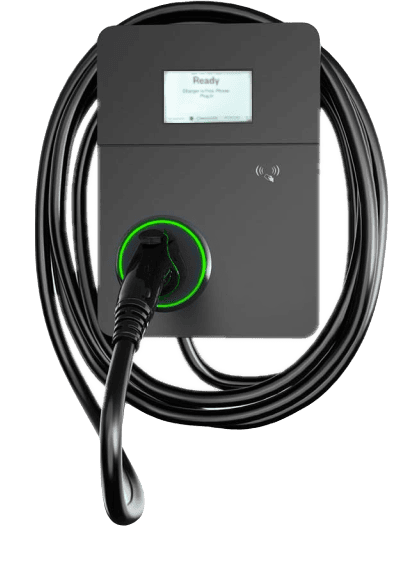

FR-48C / FR-80C OCPP J1772 Charger

Electrical Specifications
AC Input Rating

208 or 240 VAC / 60Hz, Rear or bottom entry

Maximum Current Rating

FR48C: 48 Amps, FR80C: 80 Amps

Metering

1% Accuracy

Output cable

J1772 – 21 ft’ (6.4m)

User Interfaces
Display

4.3”, outdoor-rated customizable color touch screen

Status Indicator

Onscreen and configurable ring LED



RFID Reader

ISO14443A/B, ISO15693, FeliCa

Audio

Buzzer for RFID feedback

Network Capabilities
Cellular

3G/4G CAT1 with dual SIM cards / dual antenna. e-SIM included.

Wifi

802.11b/g/n – 2.4Ghz

Mesh network

802.11 proprietary mesh

Mechanical Data
Enclosure dimensions (H x W x D)

13.5” x 9.5” x 4-3/4”

Weight

10 lbs (48A) | 15 lbs (80A)

Mounting

Wall or pedestal

Environmental Data
Enclosure rating

IP65, IK08 (screen excepted)

Operating and storage temperature range

-22 ºF to 122 ºF (-30 ºC to 50 ºC)

Compliance
Compliance

UL, FCC Part 15, ICED, EnergyStar

Additional Specifications
Electrician/Owner Management Portal

Monitor and manage charger settings through FractalCloud

OCPP Support

OCPP 1.6J

Mesh Networking

Limit WiFi infrastructure costs with mesh network

Power Management via local Mesh network

Cloud connected over-subscription for power constrained sites

Authorization Modes
  • Plug-in-to-Charge
  • Preset Pin Code
  • Accept any Pin Code
  • Local RFID
  • Accept any RFID Card
  • OCPP
Fault reporting

Logs available in FractalCloud

Driver submission via touch screen
